Gecomat® Green Energy Environmental Control Tower Packing: Used in spray layers, effectively enhancing liquid-gas mixing ratio.

Gecomat®‭ ‬Tower Packing is designed to enhance the efficiency of gas-liquid phase transitions and mass transfer‭ (‬HTU‭). ‬This product boasts several unique features to meet the requirements of various application scenarios‭. ‬Our Plasticnet tower packing‭, ‬produced with‭ ‬exclusive patented technology‭, ‬offers low pressure drop‭, ‬acid and alkali resistance‭, ‬ease of installation‭, ‬and easy cleaning‭, ‬among other characteristics‭. ‬Its intricate design enables it to reduce pressure losses while maintaining stability‭, ‬ultimately saving energy consumption‭.‬

Slide

Gecomat® Green Energy Environmental Control Tower Packing: Used in spray layers, effectively enhancing liquid-gas mixing ratio.

Employs a three-dimensional cone structure that promotes greater surface area for liquid-gas reactions‭. ‬Due to the perpendicular orientation of the fibers‭, ‬as liquid drops from one vertical fiber of the three-dimensional cone to the next‭, ‬it creates new liquid for surface mass transfer‭. ‬This mesh-like structure forms a grid‭, ‬allowing for more uniform dispersion of gas and liquid volumes‭, ‬leading to improved mass transfer efficiency‭. ‬This is especially crucial in processes requiring chemical reactions or substance separation through uniform flow‭. ‬Our exclusive catalytic fibers further refine‭ ‬gas-liquid droplets into smaller water molecule clusters‭, ‬increasing surface area and enhancing gas-liquid mixing‭. ‬This product‭ ‬is easy to clean and maintain‭, ‬ensuring long-term stable operation and extending its lifespan‭.‬

Slide

Gecomat® Green Energy Environmental Control Tower Packing: Used in spray layers, effectively enhancing liquid-gas mixing ratio.

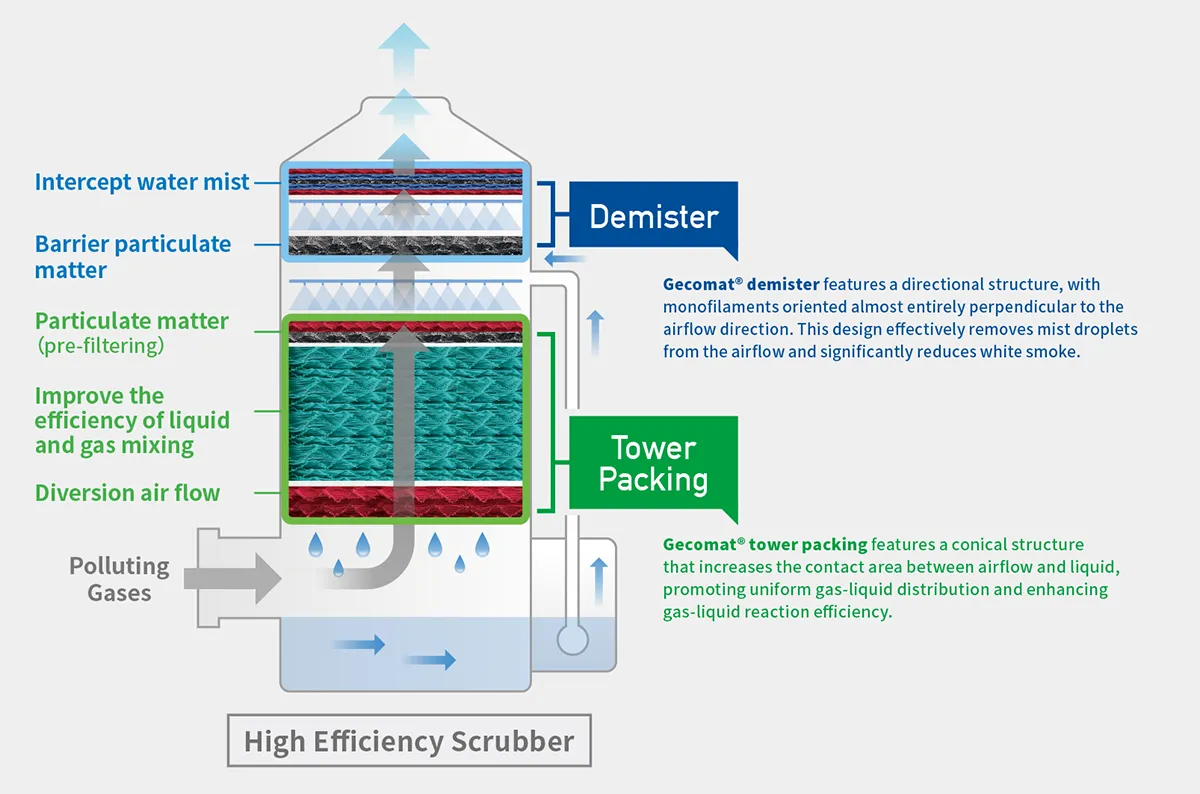

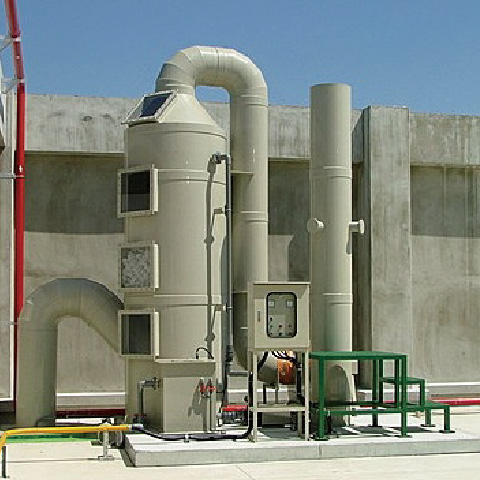

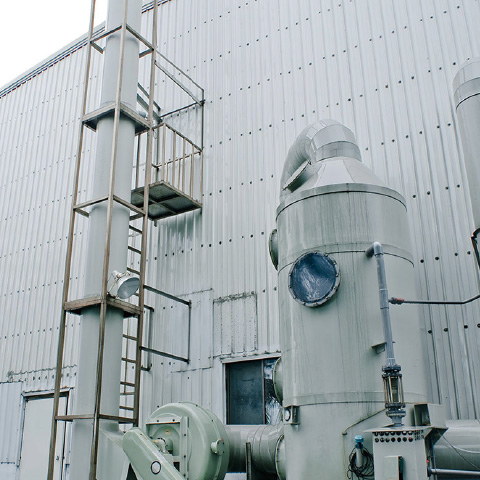

Gecomat®‭ ‬Tower Packing finds wide applications in vertical and horizontal scrubbers‭, ‬offering outstanding performance and results for industrial production and other applications‭.‬

Tower Packing – Offers Unique Features to Suit Your Need

- Applications -

Pollution Prevention Equipment

Pollution Prevention

Scrubber

Scrubbers

Gas-Liquid Separator

Etching Equipment

Acidic Cleaning Pickling Equipment

- Advantages and Features -

Green Eco Control Catalyst Technology

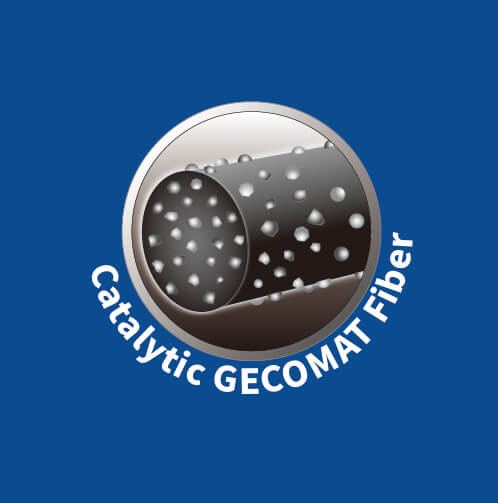

Our Green Eco Control Catalyst Technology involves the fusion of functional agents through melt spinning within each individual‭ ‬fiber‭, ‬without the need for coatings‭. ‬This ensures that the functionality of the material remains unaffected even after washing‭.‬

Easy to clean and can be reused‭.‬

PP material offers superior corrosion resistance, has a distributed elastic strength, can withstand higher pressure and pressure drop, is lightweight, and is easier to install.

Comparison Table	Gecomat Demister/Tower Packing	Other Brands
Contact Area	High contact area with a large specific surface area Effectively increases contact surface, promoting gas-liquid mixing	Smaller specific surface area Incomplete gas-liquid contact, less effective interception
Packing Height	Low height, easier transportation and installation Reduces structural load and equipment material costs	Higher height, less convenient for transportation Higher structural load, increasing equipment costs
Maintenance	Low cost, lightweight, less prone to clogging Saves labor costs and shortens maintenance time	Prone to clogging, heavier, labor-intensive Higher costs and longer maintenance time

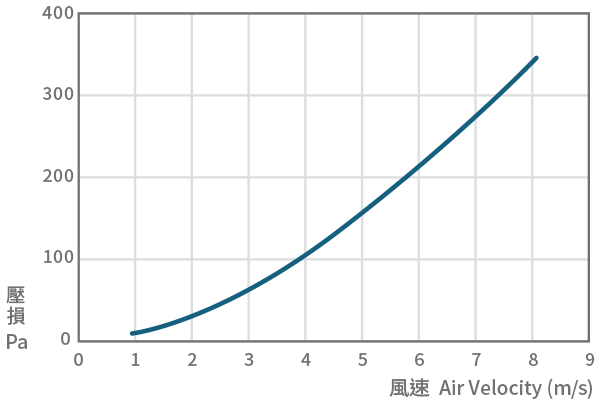

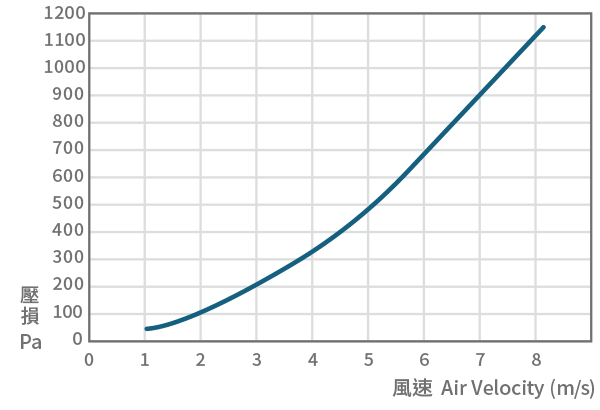

Airflow Pressure Drop	3D conical design with low pressure drop Reduces fan load, saving energy	Higher pressure drop Increases fan load and energy consumption
Mist Removal Efficiency	Customizable for needs, with mist removal efficiency over 99%	60-70% mist removal efficiency
Mold Prevention	SGS-certified mold resistance with antimicrobial materials Prevents mold and bacterial growth, keeping it fresh for longer	Prone to moisture and mold, requiring more frequent replacements and reducing equipment effectiveness
HTU Efficiency	Improves HTU efficiency Enhances gas-liquid mixing efficiency	Poor HTU efficiency

- Material Model -

HOP915D

HOP930D

SET 5

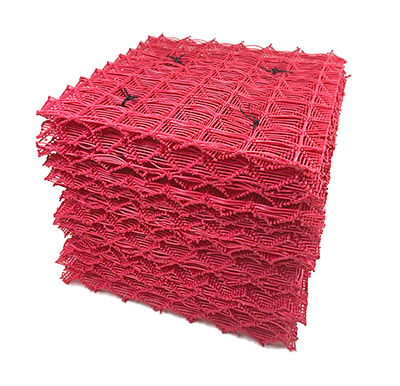

HOP-915

Enhancing Gas-Liquid Ratio

SET 6

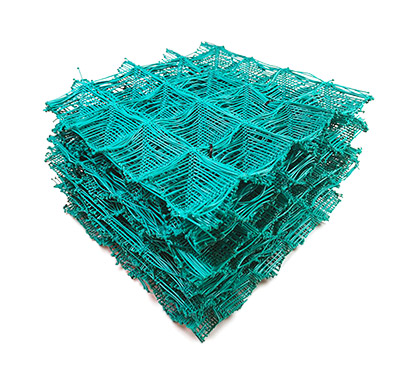

HOP-930

Enhancing Gas-Liquid Ratio

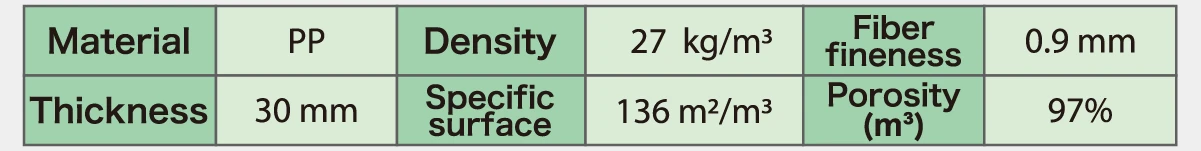

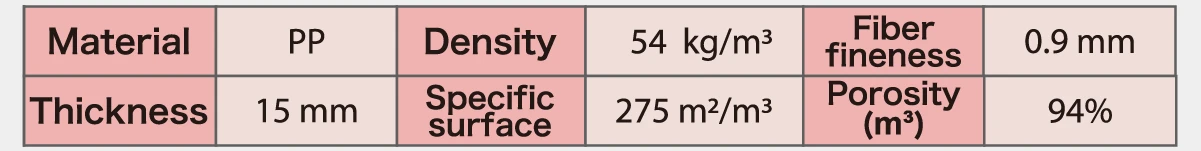

Material: PP; Heat Resistance: 99%
Applications: Removal of water/chemical water mist, oil/emulsified water mist, acidic water mist, alkaline water mist, and fine particles.

SET	OL-0199	OL-0299	OL-0599	OL-1099	HOP-915	HOP-930
Particle Removal	White Smoke	<2μm	2-10μm	>10μm	Gas-liquid mixture
Efficiency	99%				Gas-liquid mixture

*Can be combined as needed for optimal performance.

This technology is applicable to various equipment such as scrubbers‭, ‬dust collectors‭, ‬vacuum washers‭, ‬absorption towers‭, ‬drying‭ ‬towers‭, ‬evaporators‭, ‬oil mist collectors‭, ‬extraction towers‭, ‬outdoor air conditioning units‭, ‬humidifiers‭, ‬and more‭.‬

For more various combinations, please contact us.
